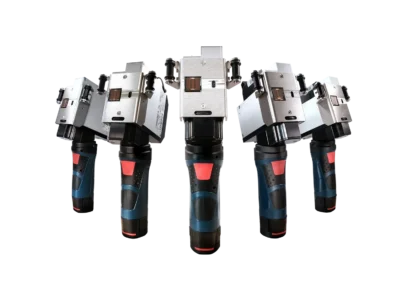

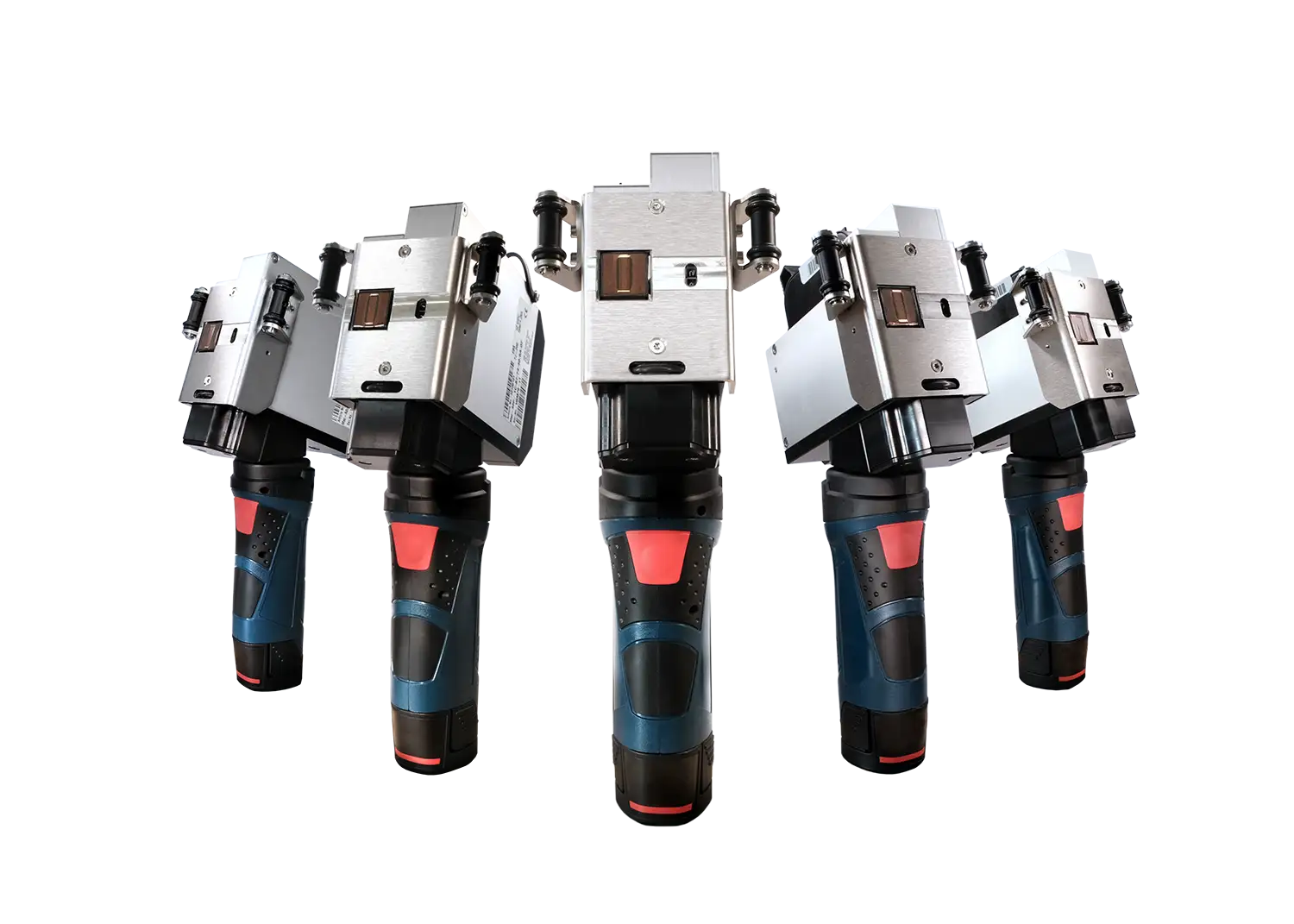

EBS-TJ-200
Mobile, precise, fast!
Completely mobile, compact and still high resolution is not possible? Yes it can! The EBS-TJ200 can be used anywhere thanks to its exchangeable battery and still has the precision of its stationary counterpart, the TJ-200.

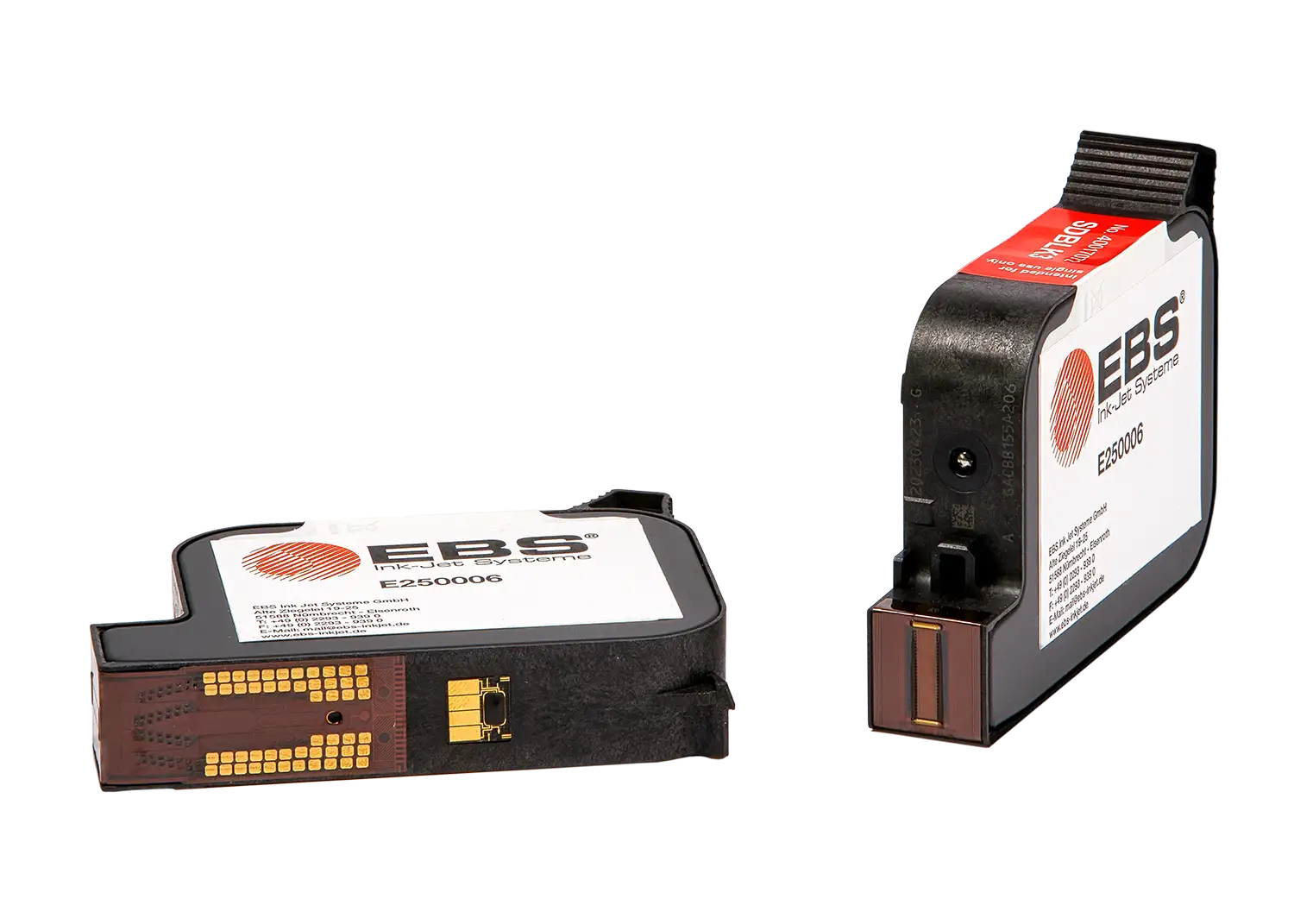

Reliable thanks to HP cartridge system!
With the proven HP cartridge quality, the EBS-TJ-200 impresses with its extremely high reliability. The cartridges are super quick to change and a wide variety of inks are available.
Parameters
Physical facts
Housing anodised aluminium (milled)
Housing dimensions
- width 75mm
- hight 95mm
- depth 123mm
Weight 1175g (including battery and ink cartridge)
Technical data *)
Number of printheads 1 as standard
Printer position during printing vertical or horizontal
Head cable no cable needed
Distance from the printhead to an object for perfect results TJ-200 should have no distance to object
Connections
- USB
- ETHERNET
- OPTION PORT, (photocell, shaft encoder, output signals…)
Terminal no integrated terminal needed (you can use pc as terminal via ethernet)
Working conditions
Power supply
- battery pack
Compressed air not required!!!
Required inactive time none, the device can run uninterruptedly for 24 hours
Specifications *)
Print height from 1 to 12,5mm
Maximum resolution 300/600 dpi (depending on the selected version)
Number of texts 9
Graphics
- Monochrome bitmap- graphics can be created i.e. with Paint or other software.
Barcodes1) EAN 8, EAN 13, EAN 128, Code 2/5, Code 2/5 check, Code 39, Code 39 check, Code 128, DUN14, GS1 Databar
2D-Codes1) Datamatrix, GS1 Datamatrix, QR-Code, PPN-Code
Automatic functions1) Date, Time, Counter, customer-specific links
Max. print speed in m/min at 300dpi, depending on resolution)
- EBS TJ-200 Mini: 30
- EBS TJ-200 Midi: 60
- EBS TJ-200 Maxi: 90
Text length up to 2000mm (depending on the selected version)
Consumables
Type of ink cartridges pigmented and non pigmented, based on water or ethanol
Ink color various
1) Not available in all EBS-TJ-200 versions
*) note – the manufacturer reserves that:
the range of available features, options and printer parameters may vary and depend on the option you have negotiated

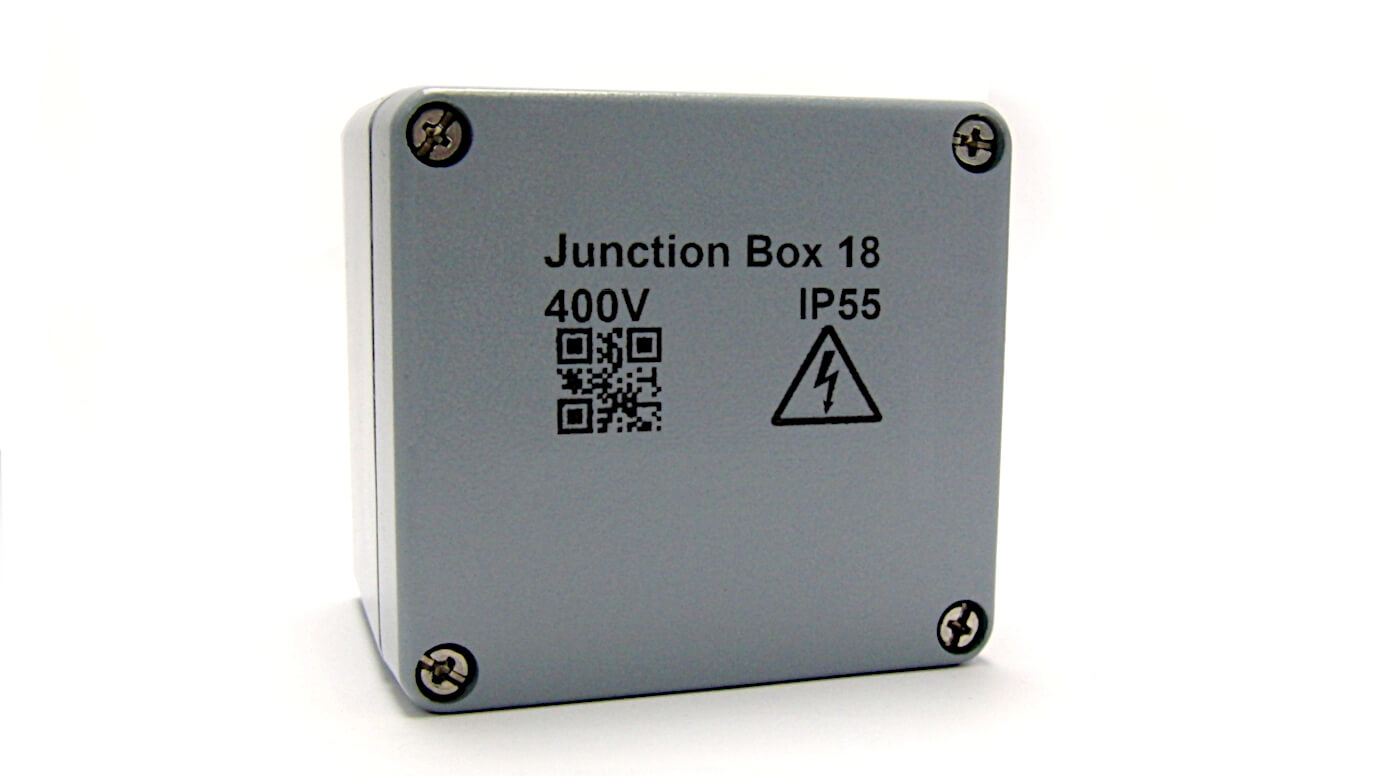

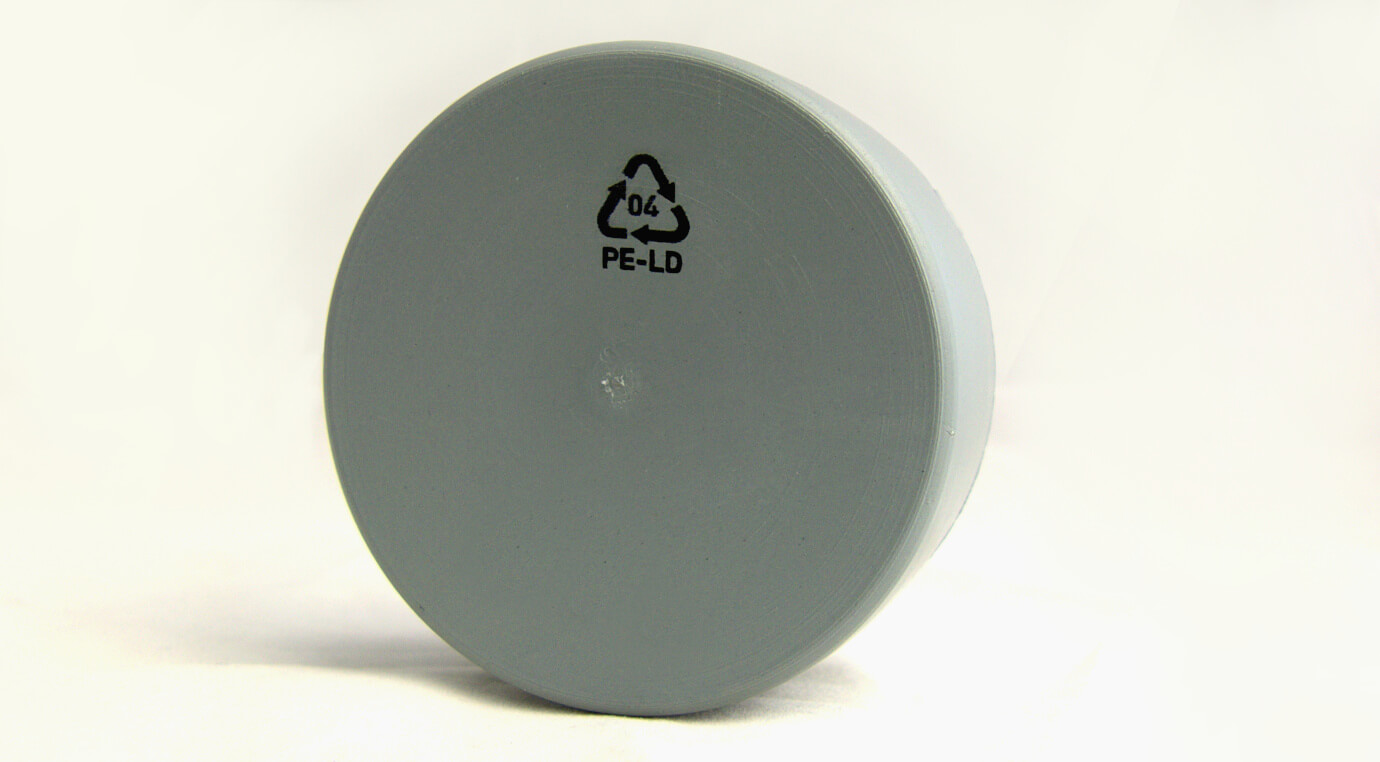

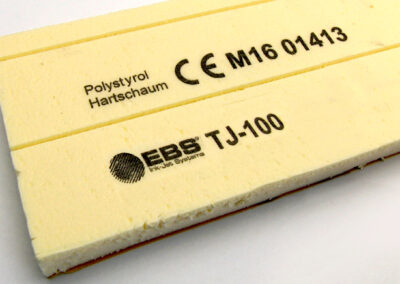

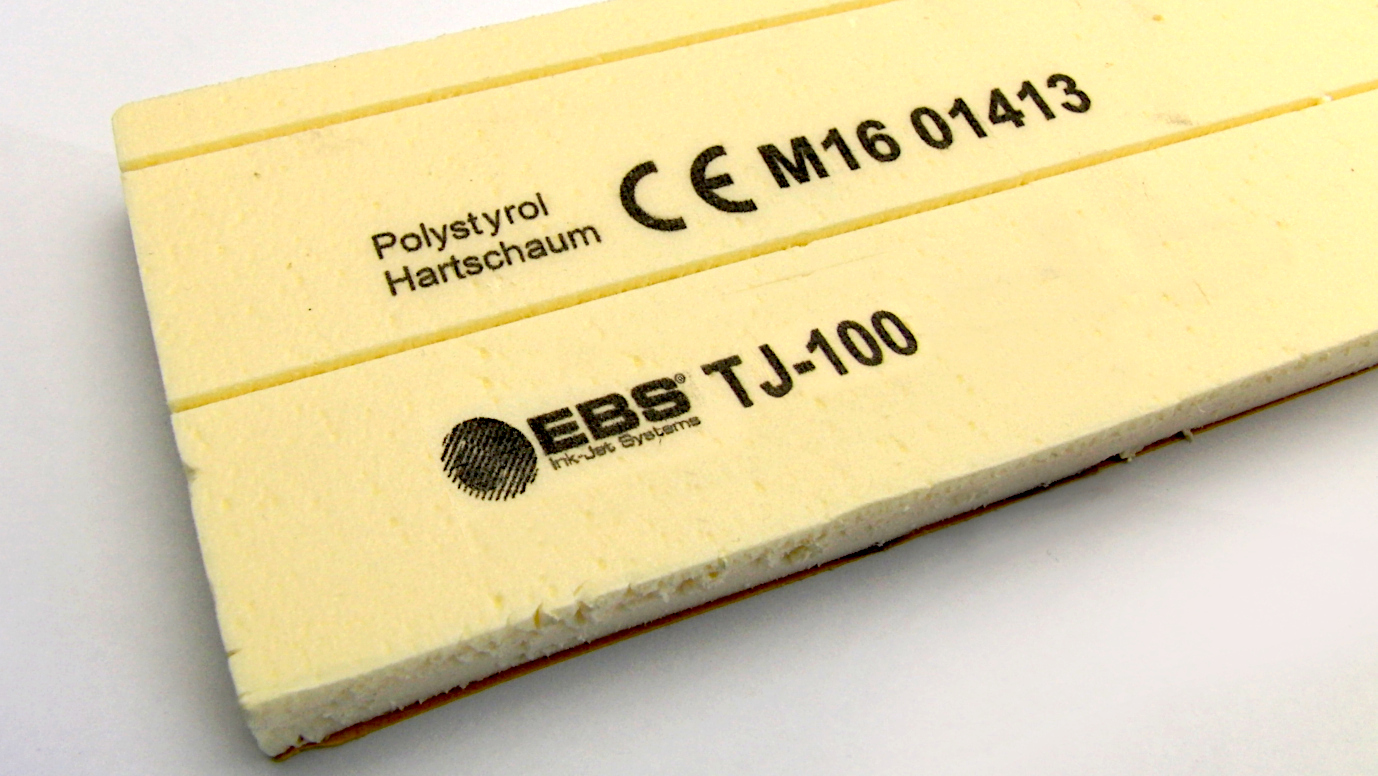

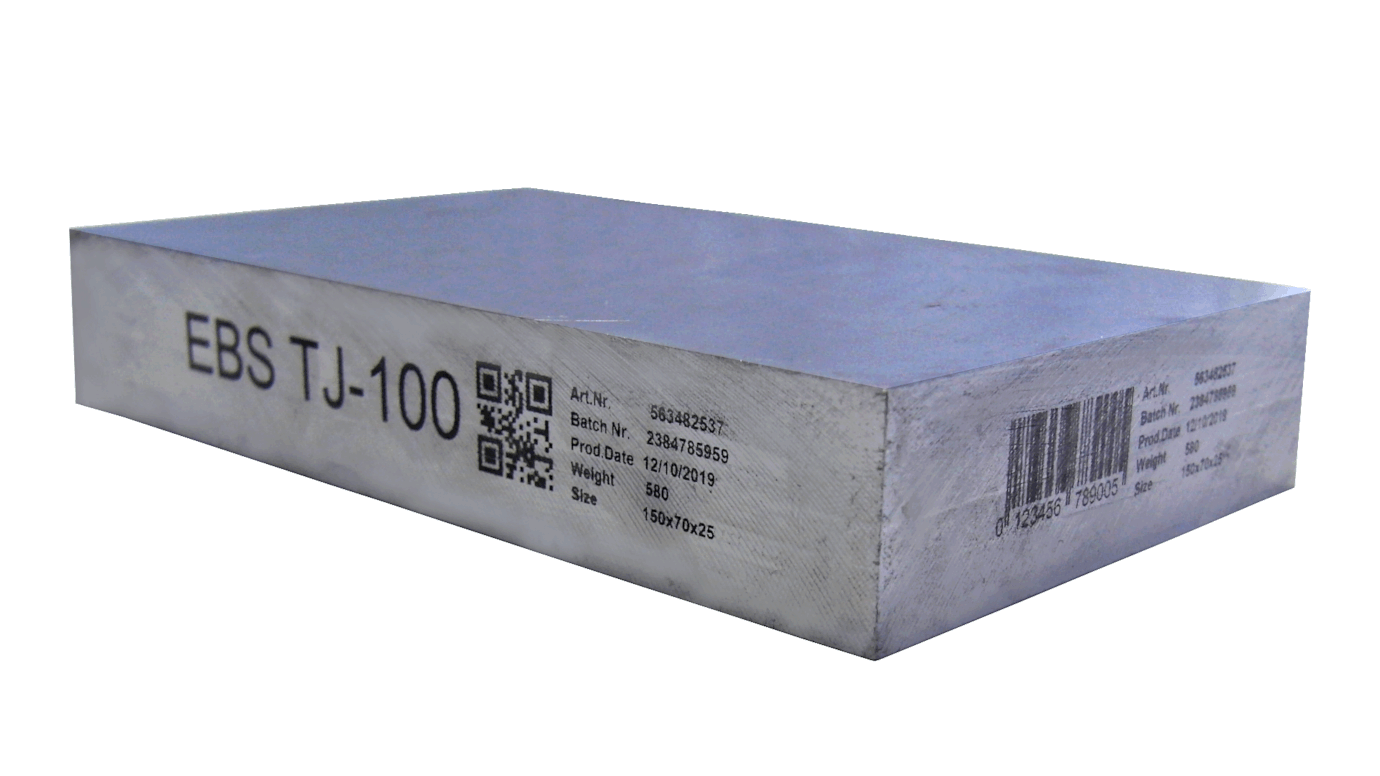

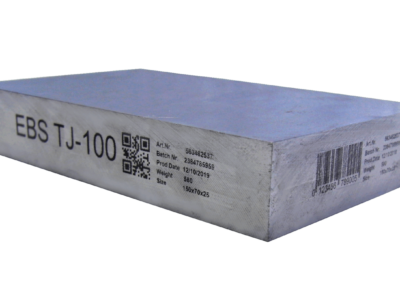

Printout Gallery
